product features
• Holder and selective glass holder made of stainless steel (Ral7016 powder-coated)
• Suitable for limited installation conditions
• Roof pitch 5°
• Load capacity 90kg/m²
• See technical drawing for dimensions.
• Glass type: gray
capacity and construction.

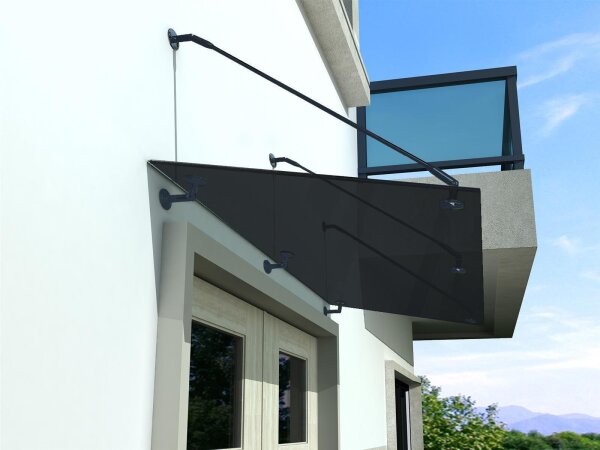

With our system, holders made of stainless steel V2a (Ral7016 blue/grey powder-coated) ensure stability and safety for the glasses. The glasses are intercepted by point holders. Thanks to this type of attachment, the suspended glass canopy offers a lot of flexibility when it comes to attachment.
You can also use this system with a clear conscience for other assembly projects. The number of supports depends on the selected glass width. This ensures a secure hold even with large canopies.
By using several panes of glass with the appropriate holders, our glasses are suitable for covering large areas. The individual glasses can be connected to each other with discreet profiles.
glass types
At BuyLando.Shop we only use high-quality laminated safety glass (VSG, 2 ESG panes with PVB film on the inside). The total glass thickness is 13.14 mm.
attachment
A stable, load-bearing wall is required for installation. In the case of a concrete or masonry wall, the attachment of the roofing is usually unproblematic.
A thermal insulation layer on a load-bearing substrate is bridged with the appropriate fastening material. Special wall brackets and Thermax threaded rods are available for this.
You can request the right fastening material from us right away. We would be happy to advise you on the selection.
In the case of wooden posts, please consult our customer service. The bar position and bar thickness must be clarified in each individual case
Important
- Please send us your current phone number.
- Deliveries of freight forwarding goods will be informed in advance by the shipping service provider by email or call and will only be made to the curb.
- No island shipping, only possible against surcharge of the island surcharge.
scope of delivery
1x glass plate
1x set of holders
without mounting kit, you can find this optionally in the shop.
Product safety information
Manufacturer information:
BuyLando GmbH
Emster Strasse 67
Nordrhein-Westfalen
Hagen, Deutschland, 58093
info@buylando-gmbh.de
https://www.buylando.shop
| Item information |
Value |
| Shipping weight: |
66,00 kg
|
| Item weight: |
63,00 kg
|
| Dimensions
( Length × Width × Height ):
|
200,00 × 90,00 × 13,14 cm |
